• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110368

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF93 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125; 150; 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

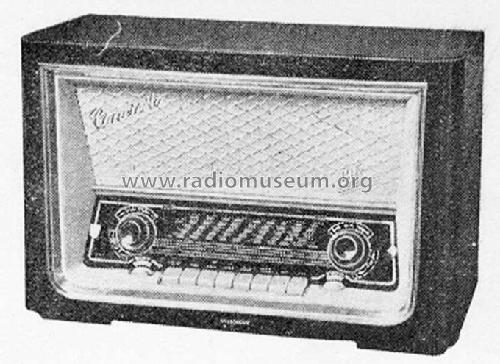

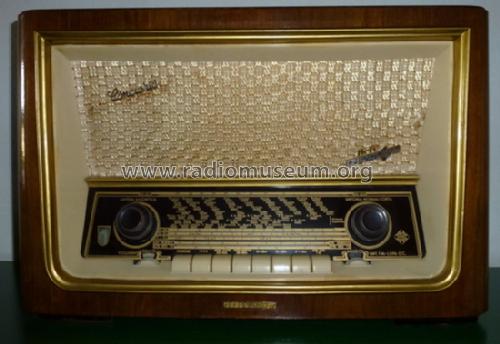

• Model: Concierto A-1857-FM - Telefunken Radiotécnica

• Shape
• Tablemodel with Push Buttons.

• Notes
• 3× OC; 2º altavoz 13 cm.
  3× SW; 2nd loudspeaker 13 cm.

• Price in first year of sale
• 6,300.00 ESP

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
