• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 194909

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC88 PCF82 EF80 EF80 EF80 PL83 ECC82 EF80 PABC80 PL82 ECC82 ECH81 PCL81 PL81 PY83 DY86 AW53-80

• Number of Transistors

• Semiconductors
• OA150 OA160 E250C500

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

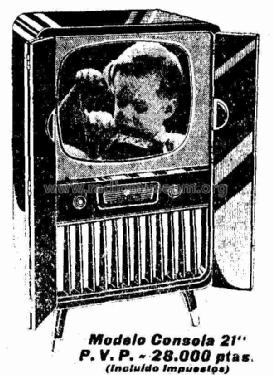

• Model: Consola 21 FE-112 /53 S [1960] - Telefunken Radiotécnica

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 620 x 975 x 459 mm / 24.4 x 38.4 x 18.1 inch

• Notes

• Pantalla / screen: TRC 21" @ 90°
  Selector rotativo de 12 canales VHF, 10 instaladados y dos reserva.

• Price in first year of sale
• 28,000.00 ESP

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Anuncio La Vanguardia Española octubre 1959

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
