• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105248

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH3 EBF2 ECF1 EL3 EM4 EL3 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

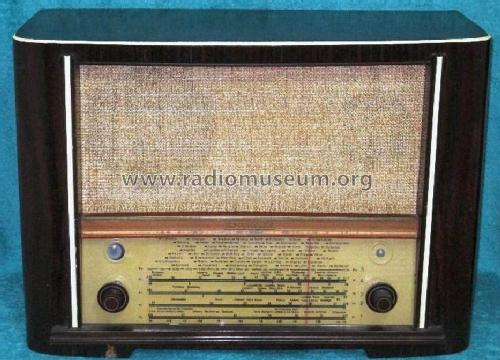

• Model: Constelacion 667A - Telefunken Radiotécnica

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 610 x 440 x 270 inch / 15494 x 11176 x 6858 mm

• Notes
• 4 x OC. 4 x SW.

• Price in first year of sale
• 4,052.00 ESP

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Jose Antonio Gonzalez-Ruiz. See "Data change" for further contributors.
