Constelación TV-332-24 Sensor Electronic
Telefunken Radiotécnica Ibérica; Getafe
- Country
- Spain
- Manufacturer / Brand
- Telefunken Radiotécnica Ibérica; Getafe
- Year
- 1975 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 301390
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 20
- Semiconductors

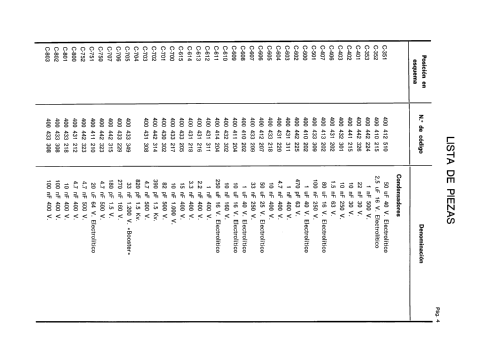

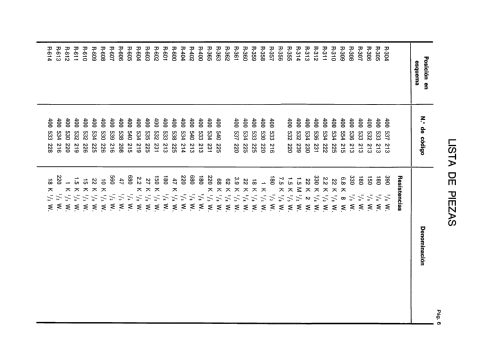

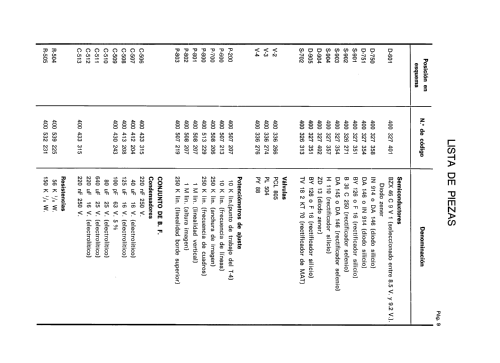

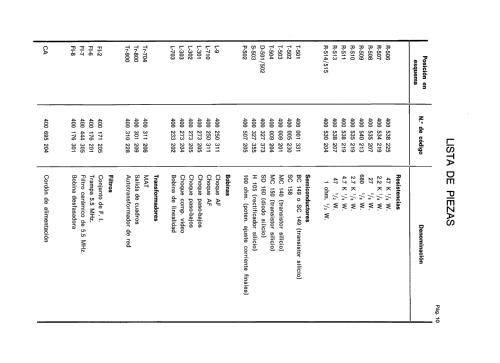

- AF239 AF106 AF279 AF280 BF196 BF197 BF199 BC107 BC157 BC147 BC147 BF120 SC149 SC158 MC140 MC150 BF258 BC238 BC308 BC307 SAS560 SAS570 TBA120 TAA790 MIC550 BB105 BA182 1N4148 1N914 OA90 OA91 BZX46 BY126 BY127 B30C250 H105 TV18 SD530 SFD86
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz; 3 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Constelación TV-332-24 Sensor Electronic - Telefunken Radiotécnica
- Shape
- Tablemodel, low profile (big size).
- Notes
-

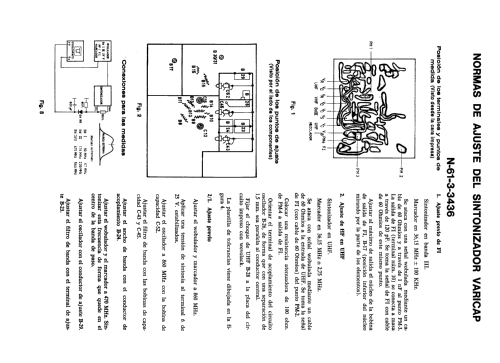

TV B/N con sintonizador VHF/UHF a varicap tipo N-61-3-3436 y TRC de 24".

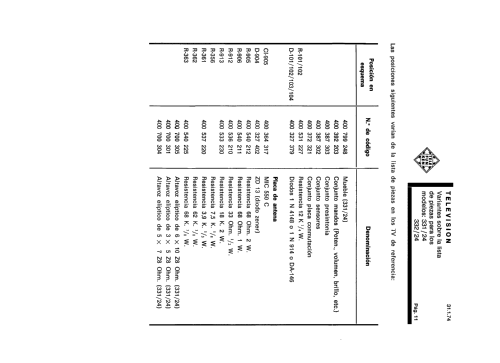

Altavoces: 3 elípticos de 5" x 7" @ 8Ω.
Mando a distancia por cable opcional.
