• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94522

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100; 118; 150; 200; 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Bakelite case

• from Radiomuseum.org

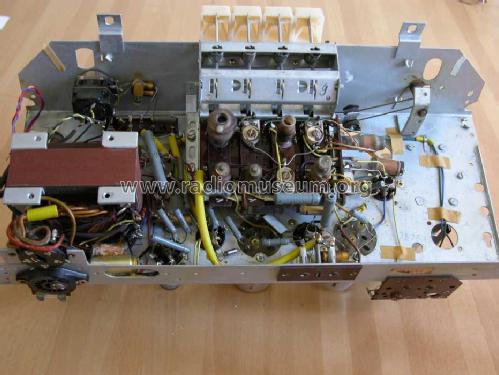

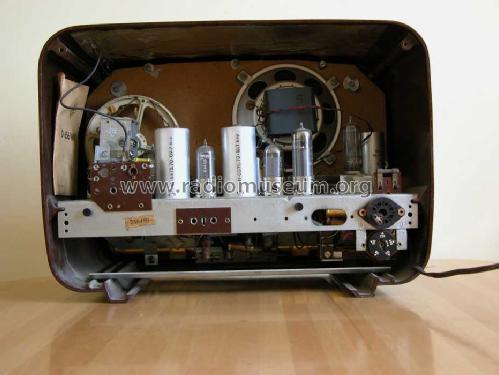

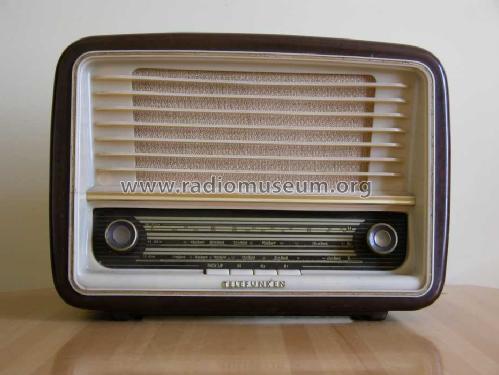

• Model: D656WK trop. - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 375 x 265 x 190 mm / 14.8 x 10.4 x 7.5 inch

• Notes
• Exportmodell, tropenfest, Kurzwellenbereiche 13 - 140 m. Modèle destiné à l'exportation, tropicalisé, ondes courtes 13 m à 140 m.
  Export model, tropicalised, shortwave coverage 13 - 140 m.

• Net weight (2.2 lb = 1 kg)
• 5.7 kg / 12 lb 8.9 oz (12.555 lb)

• Source of data
• -- Schematic

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Alain Goy. See "Data change" for further contributors.
