• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 109159

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF222 BF222 BF153 BF153 BF222 BC225 BC115 AC178 AC179 SFD80 AA121 AA123 AA123 BC222 PTO/3 B30C450

• Main principle
• Superhet with RF-stage; ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

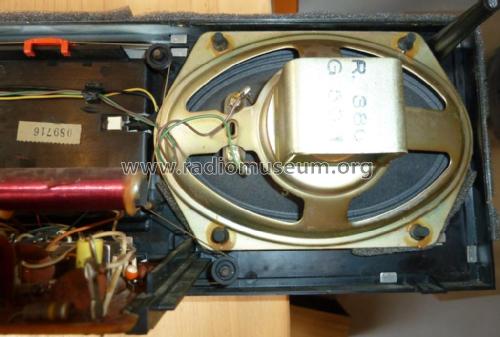

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Dacapo 101 - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 420 x 145 x 135 mm / 16.5 x 5.7 x 5.3 inch

• Notes

• Siehe auch das technisch identische Modell Telefunken Jubilate 301a.

• Literature/Schematics (1)
• -- Original-techn. papers. (TFK Service Information RVH 70-4350)

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
