• Year
  • 1977/1978
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 90325

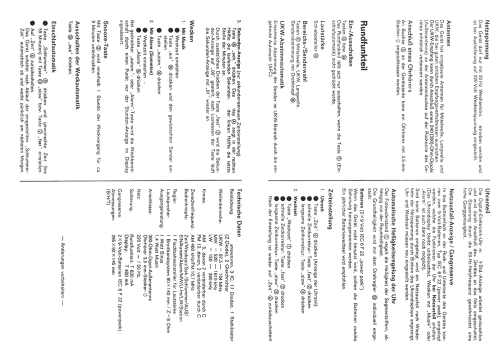

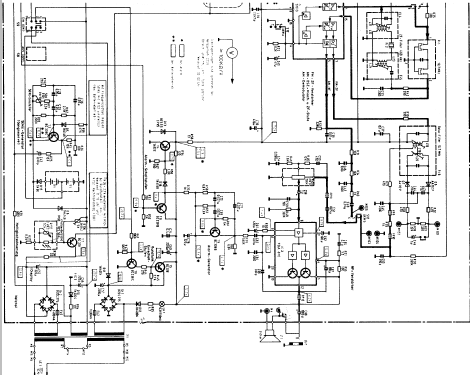

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digitale 200 - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 295 x 92 x 145 mm / 11.6 x 3.6 x 5.7 inch
  • Notes
  • Mit 7-Segment-LED-Zeitanzeige, 2× 9-V-Blockbatterien als Gangreserve für die Uhr, interne Antenne und Antennenanschluss. Gehäusefarben: rot, perlweiß oder mattschwarz/silber.
  • Net weight (2.2 lb = 1 kg)
  • 1.670 kg / 3 lb 10.9 oz (3.678 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd Pötzsch. See "Data change" for further contributors.
