Digitale electronic 500

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90931

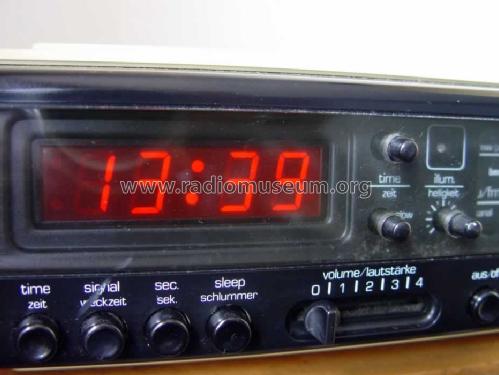

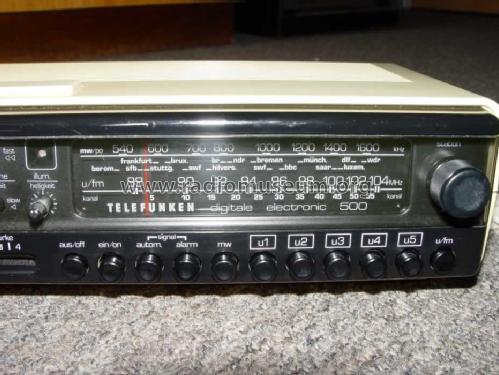

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• TBA570 TBA810 MM5387

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 5 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110/220; (2 × 9) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digitale electronic 500 - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 325 x 95 x 165 mm / 12.8 x 3.7 x 6.5 inch

• Notes
• Dioden: 20

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Price in first year of sale
• 228.00 DM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
