- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1974 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 163580
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF ?/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 8 cm = 3.1 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

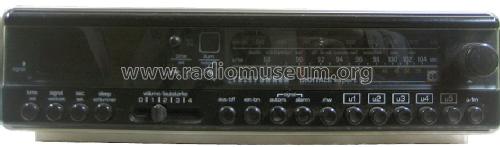

- Model: Digitale Expert S - Telefunken Deutschland TFK,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 320 x 90 x 165 mm / 12.6 x 3.5 x 6.5 inch
- Notes
- Exlusivgerät für die Expert Händler.
Das Gerät entspricht dem Telefunken Digitale electronic 500.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Literature/Schematics (1)
- Telefunken Service Orginal Druck Nr. 319 206 601-2
- Author
- Model page created by Dieter Michel. See "Data change" for further contributors.
