Einbau-Gerät, Einbau-Vorsatz UKW1C

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1950/1951

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 4084

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECF12 or UCF12

• Main principle
• RF Converter/Adapter (not voltage converter)

• Tuned circuits
• 1 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Einbau-Gerät, Einbau-Vorsatz UKW1C - Telefunken Deutschland TFK,

• Shape
• Chassis only or for «building in»

• Notes

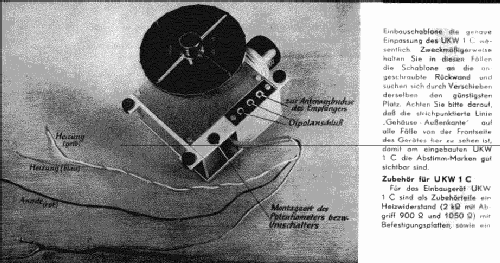

• Reflex für NF [FS5108]

• Price in first year of sale
• 44.00 DM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkschau (4907)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference

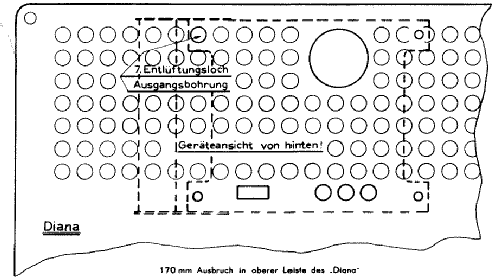

• Eine Abbildung findet sich im Doppelband "Radios von gestern"
