• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1937/1938

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 4348

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• REN914 REN904 REN904 RGN504

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

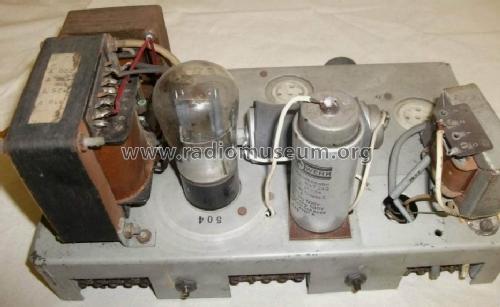

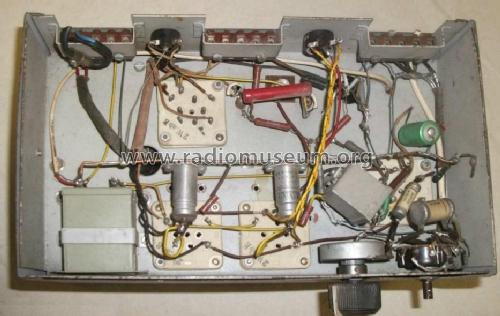

• Model: Ela V 201/1 - Telefunken Deutschland TFK,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 300 x 165 x 195 mm / 11.8 x 6.5 x 7.7 inch

• Notes
• Steuerverstärker. Eingangs-Steuerspannung: 0,1 V; Eingangs-Impedanz 100 kOhm, Ausgangs-Impedanz: 20 kOhm.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 172.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
