- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1938/1939
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 4263

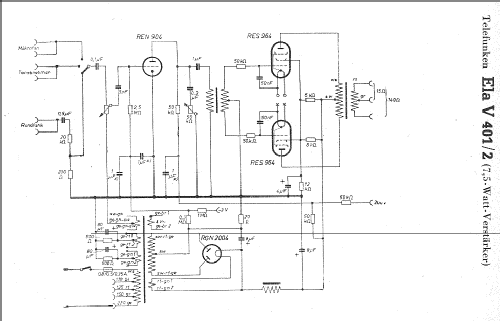

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 7.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Ela V401/2 - Telefunken Deutschland TFK,
- Dimensions (WHD)
- 430 x 205 x 245 mm / 16.9 x 8.1 x 9.6 inch
- Notes
- Net weight (2.2 lb = 1 kg)
- 13.5 kg / 29 lb 11.8 oz (29.736 lb)
- Price in first year of sale
- 330.00 RM
- Source of data
- Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange + FS-Bestückungstabellen
