Electronic-Center 6001 HiFi

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1974–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29390

• Picture
• Schematics

Previous Next

Previous Next

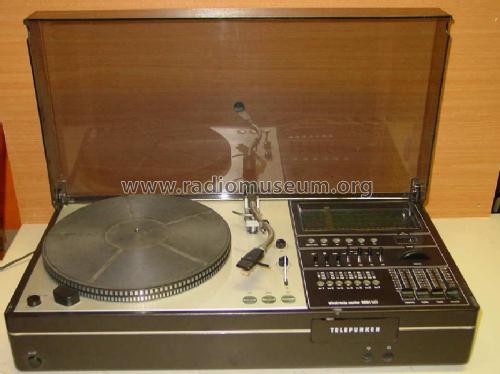

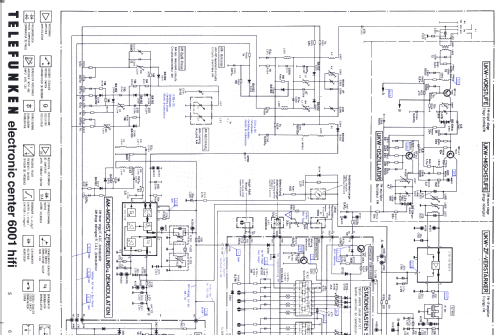

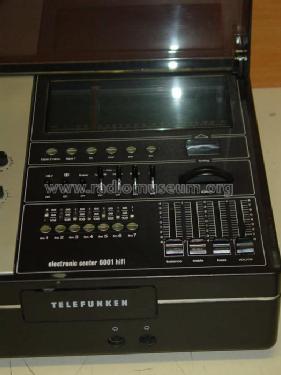

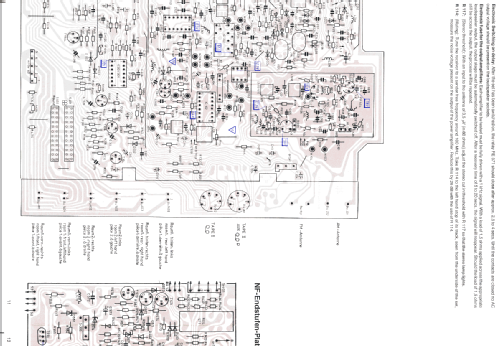

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 67

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 50/60 Hz, 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 70 W (120 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Electronic-Center 6001 HiFi - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 680 x 200 x 376 mm / 26.8 x 7.9 x 14.8 inch

• Notes

• ICs: 16.
  HiFi-Stereo-Steuergerät. Ausgangsleistung: 2× 35 W (Sinus).

  Phono-Chassis = S500,
  33/45 UpM, Riemenantrieb, Stroboskoplampe.



• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1974

• Mentioned in
• Funkschau (9/1975, S. 42, 43, 44, 45)
