• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193803

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

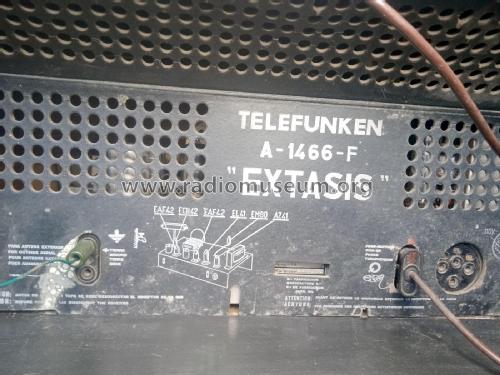

• ECH42 EAF42 EAF42 EL41 EM80 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 3.8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Éxtasis A-1466-F - Telefunken Radiotécnica

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 520 x 400 x 360 mm / 20.5 x 15.7 x 14.2 inch

• Notes

• Radio Chassis: Telefunken Allegretto A-4167
  Phono Chassis: Telefunken TP-352 con cápsula TTU

• Net weight (2.2 lb = 1 kg)
• 14.8 kg / 32 lb 9.6 oz (32.599 lb)

• Price in first year of sale
• 5,950.00 ESP

• Literature/Schematics (1)
• Anuncio La Vanguardia Española Diciembre 1954

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
