Farbfernseh-Chassis 512
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1976/1977 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 330022
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Material
- Various materials
- from Radiomuseum.org
- Model: Farbfernseh-Chassis 512 - Telefunken Deutschland TFK,
- Shape
- Chassis only or for «building in»
- Literature/Schematics (1)

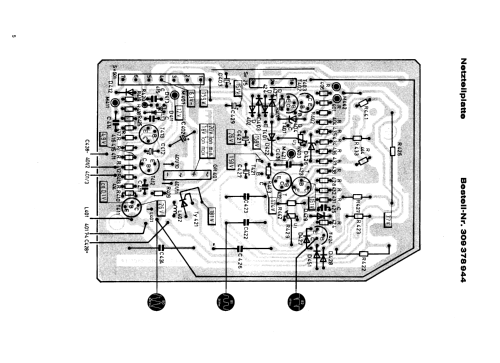

- -- Original-techn. papers. (Lagepläne Druck Nr. 319 321 141)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
