Farbfernseh-Chassis Ch= 712

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1977 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 282466

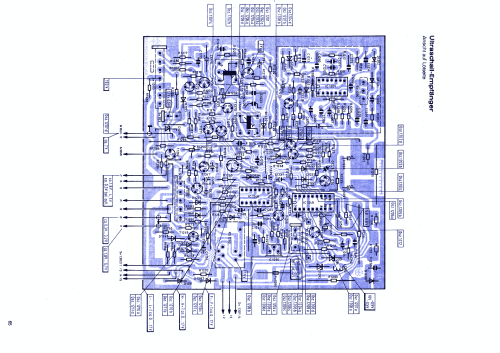

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Farbfernseh-Chassis Ch= 712 - Telefunken Deutschland TFK,
  • Shape
  • Chassis only or for «building in»
  • Notes

  • Das Grund-Chassis 712 ist in den unten angeführten Geräten mit unterschiedlichen Ausstattungen eingebaut. Siehe Bausteinliste.

    Palcolor 735TM
    Palcolor 736
    Palcolor 745TM
    Palcolor 746
    Palcolor 756
    Palcolor 7056
    Palcolor 765TM
    Palcolor 7605TM
    Palcolor 766
    Palcolor 7066
    Palcolor DC836 supersonic
    Palcolor DC8036 supersonic
    Palcolor 8306 supersonic
    Palcolor 845TM supersonic
    Palcolor 846 supersonic
    Palcolor 8605 TM supersonic
    Palcolor DC8605TM supersonic
    Palcolor DC866 supersonic
    Palcolor 8066 supersonic
    Palcolor DC8066 supersonic
    Palcolor DC8606 supersonic
    Palcolor 885TM supersonic
    Palcolor DC885 supersonic
    Palcolor DC886 supersonic
    Palcolor 895TM supersonic
    Palcolor 8095TM supersonic
    Palcolor DC8096 supersonic
    Palcolor DC986 supersonic




  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
