• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1961/1962

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 105595

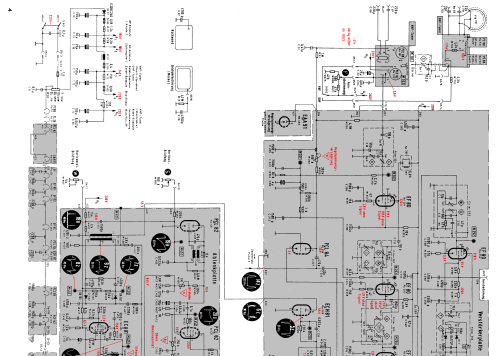

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC88 PCF82 PC88 PC86 EF80 EF80 EF80 PCL84 ECH81 EF80 PCL82 ECH81 PCL82 EAA91 PL36 PY88 DY86 AW59-90

• Number of Transistors

• Semiconductors
• OA160 OA160 OA161 OA161 OA172 OA172 E220C5 E220C450

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

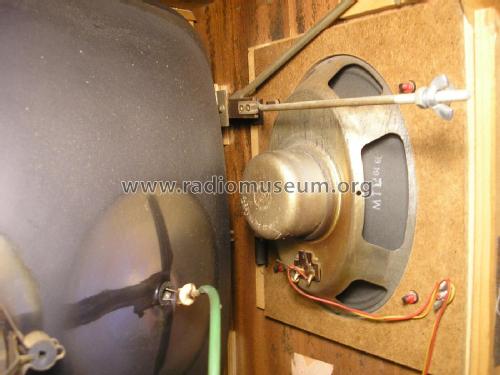

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

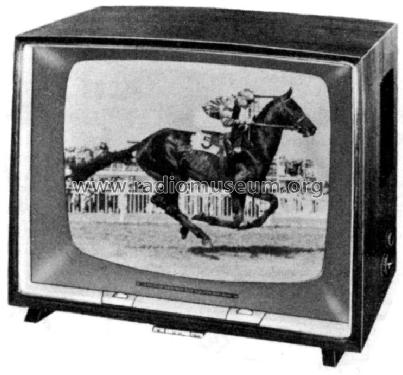

• Model: FE211T - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 510 x 410 mm / 24.4 x 20.1 x 16.1 inch

• Notes

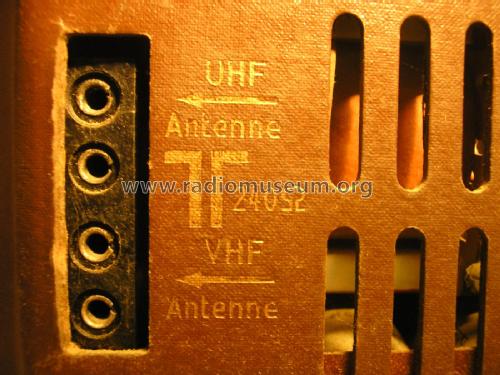

• VHF/UHF; anschraubbare Beine gegen Mehrpreis (18,- DM).

  Anschluss für Fermregler FR 5 (Regelung von Lautstärke und Helligkeit)

• Net weight (2.2 lb = 1 kg)
• 31 kg / 68 lb 4.5 oz (68.282 lb)

• Price in first year of sale
• 998.00 DM

• Source of data

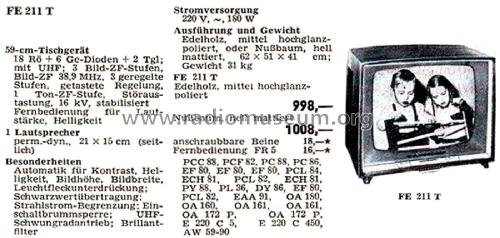

• HdB d.Rdf-& Ferns-GrH 1961/62

• Mentioned in
• -- Original-techn. papers. (Fernseh-Service 1961/62, FHV61-22111)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
