- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1957/1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 99836
Q: TFK Katalog, Neuheiten 1957/58
Q: TFK Katalog, Neuheiten 1957/58
Q: Katalog RF/FS-Großhandel 1957/58

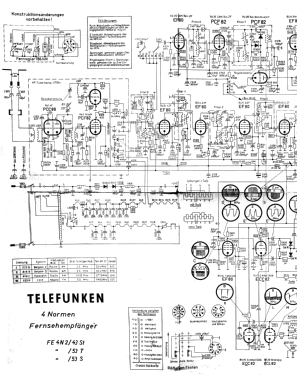

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- PCC88 PCF82 EF80 EF80 EF80 EF80 PL83 ECC82 EF80 EF80 ECC82 PCL82 ECH81 EF80 EF80 PCF82 EF83 PL82 PL36 PY83 DY86 AW53-80
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: FE4N2/53S - Telefunken Deutschland TFK,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 620 x 995 x 460 mm / 24.4 x 39.2 x 18.1 inch
- Notes
-
Vier-Normen-Empfänger. Kanäle 2-11 für CCIR-Norm bestückt, Kanäle 1 und 12 nach Wahl mit Kanälen französischer Norm; Intercarrierton- und Parallelton-Verfahren.
Anschluss für Fernbedienung (Regelung von Lautstärke, Helligkeit und Kontrasl).
- Net weight (2.2 lb = 1 kg)
- 55.5 kg / 122 lb 3.9 oz (122.247 lb)
- Price in first year of sale
- 1,198.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1957/58
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
