- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1961/1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 213048
Elle vient de ma propre collection

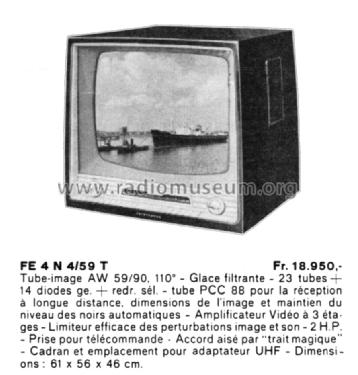

Notre Marché Radio & TV, No. 152, Jan. 1962

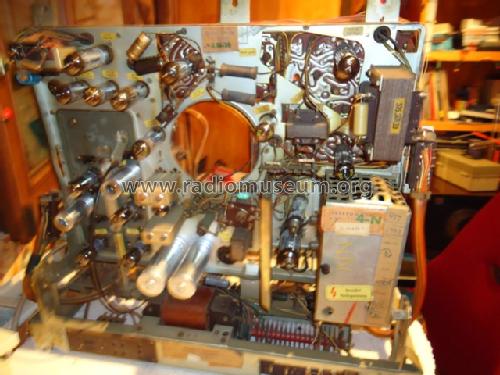

Photo provenant de ma collection
Photo provenant de ma propre collection.
Photo provenant de ma propre collection.
Photo provenant de ma propre collection.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- AW59-90
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: FE4N4/59T - Telefunken Deutschland TFK,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 610 x 560 x 460 mm / 24 x 22 x 18.1 inch
- Notes
- 14 Germanium-Dioden, Seleniumgleichrichter. UHF-vorbereitet.
- Price in first year of sale
- 18,950.00 BEF
- Mentioned in
- Notre Maché Radio & TV, No. 152, Jan. 1962
