Festival FE-125 /19 sin UHF
Telefunken Radiotécnica Ibérica; Getafe
- Country
- Spain
- Manufacturer / Brand
- Telefunken Radiotécnica Ibérica; Getafe
- Year
- 1965
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 195091

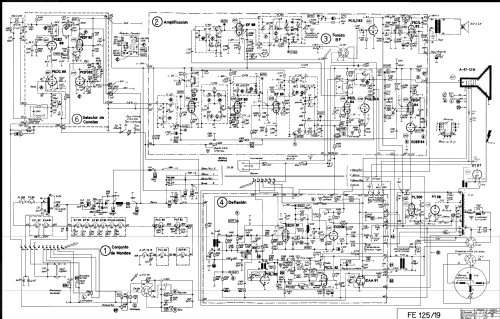

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- PCC88 PCF82 EF183 EF80 EF80 PCL84 ECH84 EF80 PCL82 ECH81 EAA91 PCL82 PL500 PY88 DY87 A47-12W
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Festival FE-125 /19 [sin UHF] - Telefunken Radiotécnica
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Telefunken Radiotécnica Ibérica, S.A., Festival FE-125 /19
TV B/N 19"
- Selector rotativo de VHF
- Altavoz elíptico de 6" x 8"

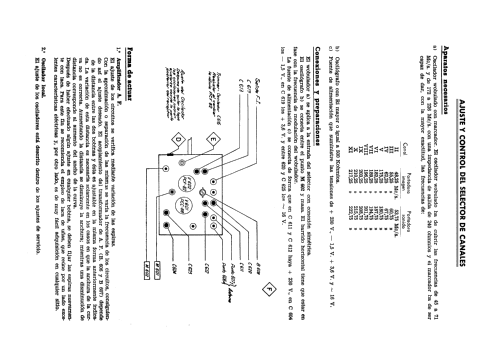

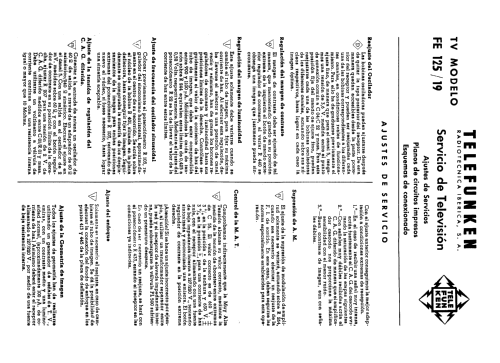

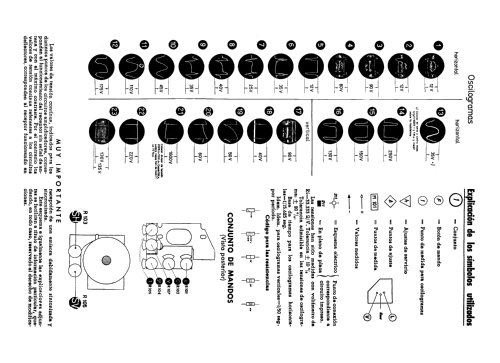

- Literature/Schematics (1)
- -- Original-techn. papers. (Anuncio La Vanguardia Española septiembre 1965)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
