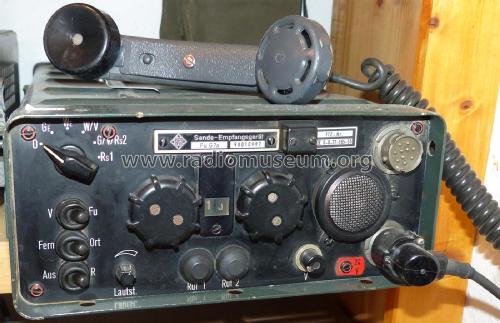

Funksprechanlage FuG 7a
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1957 ?
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 140200

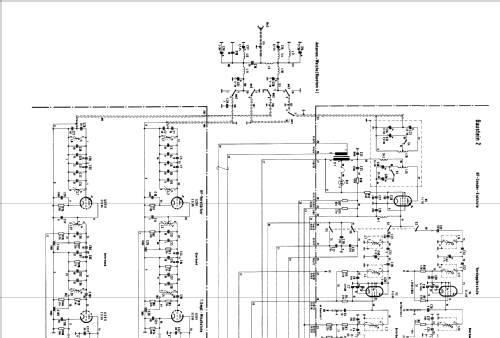

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Number of Transistors
- 1
- Semiconductors
- OC624
- Main principle
- Superheterodyne (common)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Other, details in remarks or not known. / 12; 24; 220 Volt
- Power out
- 10 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Funksprechanlage FuG 7a - Telefunken Deutschland TFK,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 276 x 440 x 120 mm / 10.9 x 17.3 x 4.7 inch
- Notes
- Telefunken BOS Funksprechanlage FuG 7a;

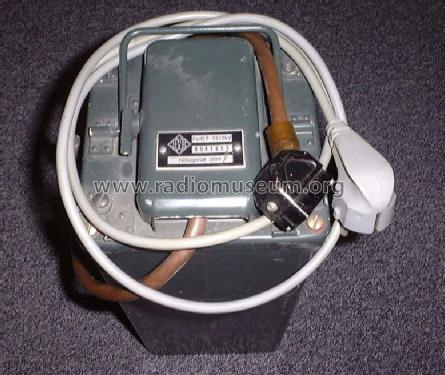

4 m Bereich/ 75 - 87 MHz, FM, 15 W Pout, 50/100 Kanäle im Ober & Unterband, 50 kHz Abstand, Röhren nur einmal gelistet, alternativ auch US Typen bestückbar, 1750 Hz & 2135 Hz Ruftaste, Stromversorgung jeweils über eigenem Einschub zur Montage auf getrenntem schwingmetall gefederten Einbaurahmen, umfangreiches Zubehör bekannt.
- Net weight (2.2 lb = 1 kg)
- 9.6 kg / 21 lb 2.3 oz (21.145 lb)
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by a member from A. See "Data change" for further contributors.
