• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1973–1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28993

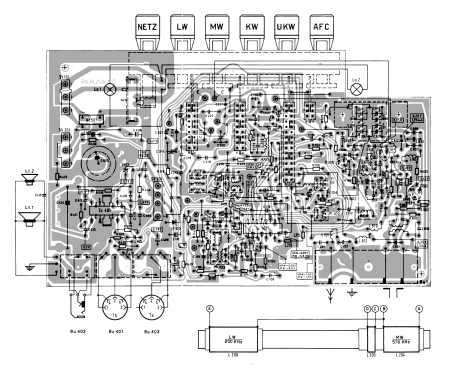

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• BF324 BF450 TBA570 TBA810

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: gavotte 401 - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 130 x 190 mm / 24.4 x 5.1 x 7.5 inch

• Notes
• ICs: 2
  Im VDRG-Handbuch sind fälschlicher Weise 3 Transistoren angegeben.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973

• Other Models

• Here you find 3559 models, 3144 with images and 2111 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
