• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4310

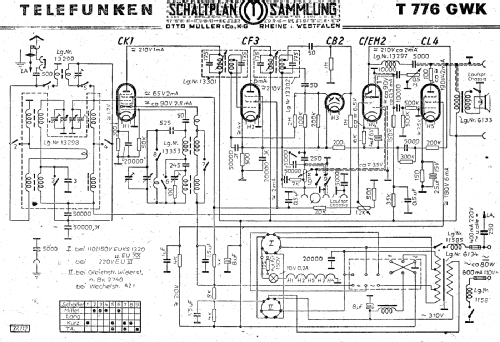

Click on the schematic thumbnail to request the schematic as a free document.

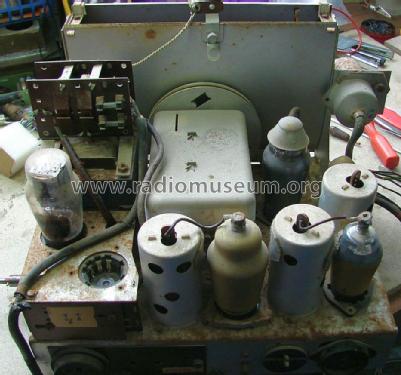

• Number of Tubes
• 6

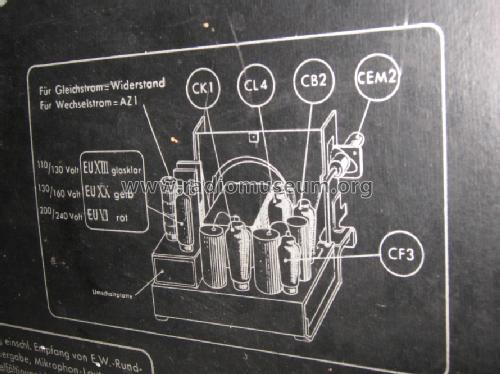

• Valves / Tubes
• CK1 CF3 CB2 CL4 C/EM2 optional AZ1 Ks1320 or EUVI or EUXX

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

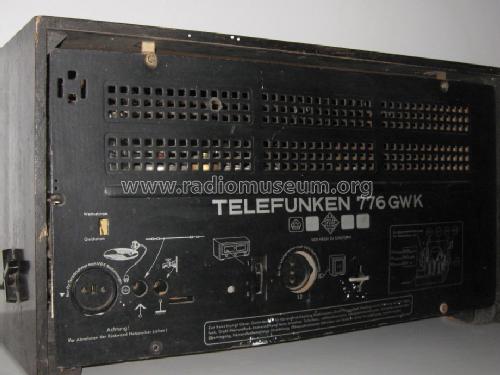

• Model: Gross-Super 776GWK - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 645 x 350 x 337 mm / 25.4 x 13.8 x 13.3 inch

• Notes

• Variable Bandbreitenregelung.

  ! Vorsicht Spartransformator, keine Netztrennung !

  Paralleltype zum AEG 77GWK.

• Net weight (2.2 lb = 1 kg)
• 18.2 kg / 40 lb 1.4 oz (40.088 lb)

• Price in first year of sale
• 348.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Eine Abbildung findet sich im Doppelband "Radios von gestern"

• Other Models

• Here you find 3557 models, 3142 with images and 2110 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
