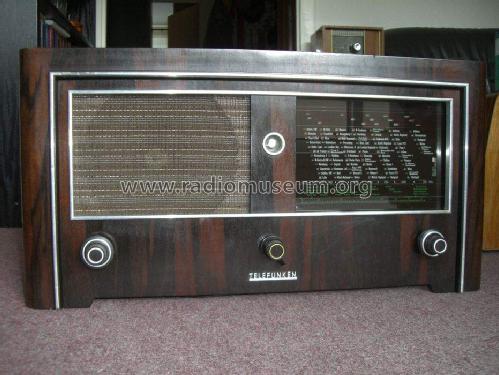

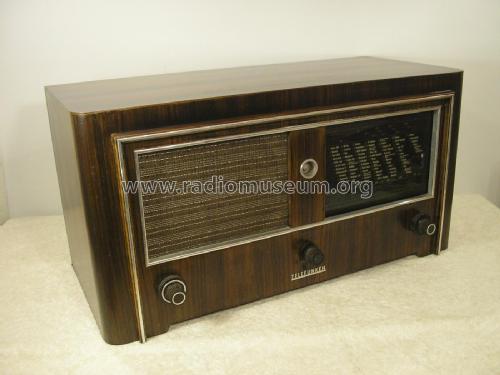

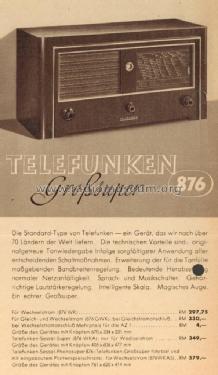

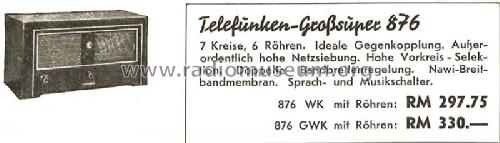

Gross-Super 876GWK (T876GWK)

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4282

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

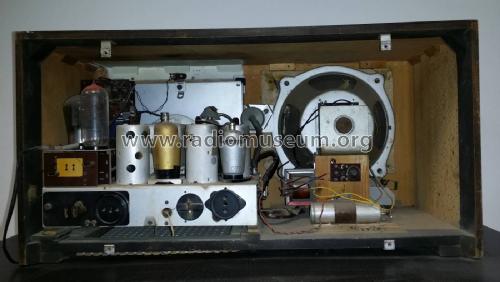

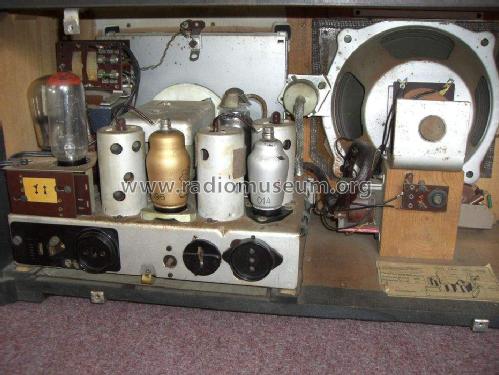

• Valves / Tubes
• CK1 CF3 CB2 CL4 C/EM2 optional AZ1 Ks1320 or EUVI or EUXX

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gross-Super 876GWK - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 670 x 335 x 332 mm / 26.4 x 13.2 x 13.1 inch

• Notes

• Bandfiltereingang für LW und MW.
  Variable Bandbreite.

  Bei Gleichspannung wird anstatt einer AZ1 der Vorwiderstand Lager Nr.11582 eingesetzt,ist umschaltbar für 110 und 220 Volt.

• Net weight (2.2 lb = 1 kg)
• 16.4 kg / 36 lb 2 oz (36.123 lb)

• Price in first year of sale
• 330.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
