Hi Fi Lautsprecher Box L60
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1971–1974
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 161692
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Loudspeaker
- 2 Loudspeakers / Ø 170 inch = 431.8 cm
- Power out
- 15 W (40 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Hi Fi Lautsprecher Box L60 - Telefunken Deutschland TFK,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 470 x 270 x 195 mm / 18.5 x 10.6 x 7.7 inch
- Notes
-
Hi Fi Lautsprecher Box L60

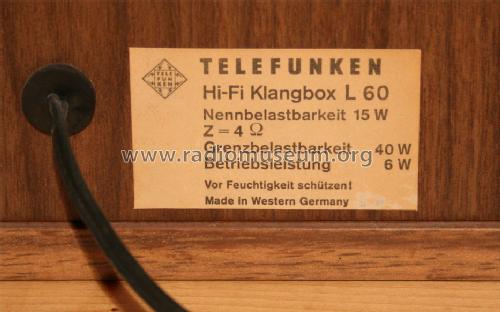

2 Weg System, 2 Lautsprecher, Tiefton 170 mm, Mittel-Hochton 75 x 130 mm Nennbelastbarkeit 15 Watt, Grenzbelastbarkeit 40 Watt, Übertragungsbereich 45 - 20000 Hz, Impedanz 4 Ohm, Dekorausführungen nußbaum oder perlweiß.
Preis gültig in 1972.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Price in first year of sale
- 180.00 DM
- Source of data
- -- Original prospect or advert
- Mentioned in
- Original Telefunken Service Unterlagen
- Literature/Schematics (1)
- Telefunken Programm 1971 bis 1974, Preisliste 1972
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
