HiFi-Studio 1

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1980–1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115813

• Picture
• Schematics

Previous Next

Previous Next

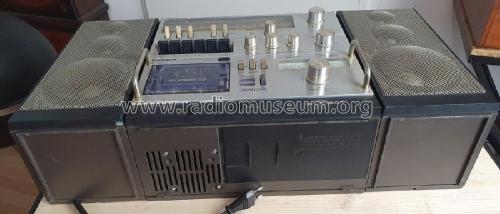

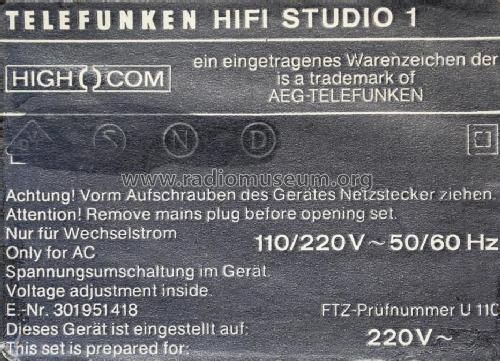

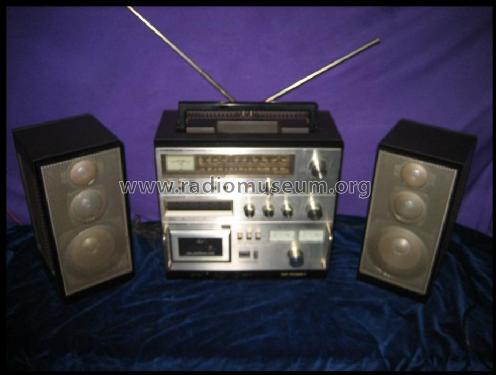

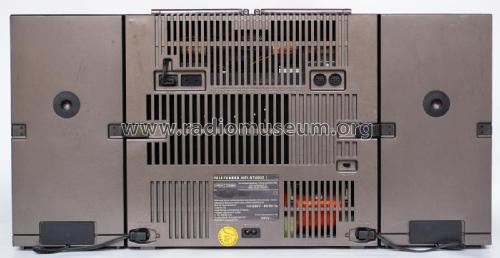

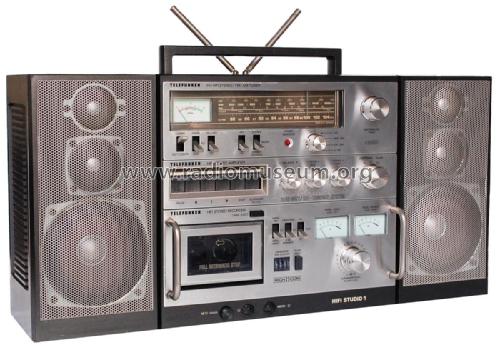

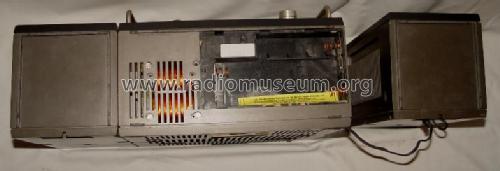

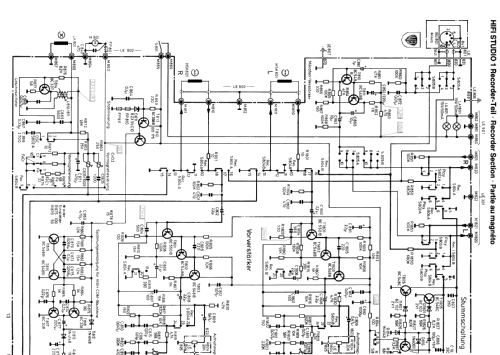

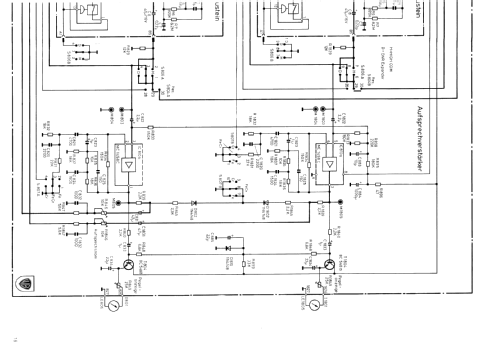

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 56

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 8 × 1,5 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: HiFi-Studio 1 - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 638 x 315 x 167 mm / 25.1 x 12.4 x 6.6 inch

• Notes

• Zwei Lautsprecherboxen mit je 3 Pdyn-LS - die seitlich eingehangen werden - gehören zum Lieferumfang.

  Parallelgerät zum Interfunk Compact 9000.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 9,990.00 ATS

• Mentioned in
• -- Original prospect or advert (Funkberaterkatalog 1982)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Funkschau (1/1981, S. 81 - 86 / Ausführliche Beschreibung)

• Author
• Model page created by Wilfried Winter. See "Data change" for further contributors.

• Other Models

• Here you find 3559 models, 3144 with images and 2111 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
