HR3500 HiFi Ch= 1000

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1980/1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141621

• Picture
• Schematics

Previous Next

Previous Next

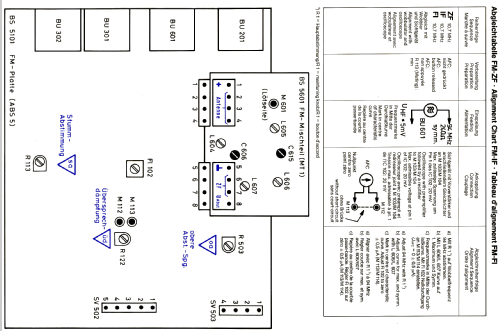

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 27

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: HR3500 HiFi Ch= 1000 - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 535 x 130 x 295 mm / 21.1 x 5.1 x 11.6 inch

• Notes
• ICs: 9
  Telefunken Stereo-Steuergerät HR3500 HiFi.
  Ausgangsleistung 2× 50 Watt (Sinus), 2× 70 Watt Musikleistung, Leistungsbandbreite 15-43000 Hz, 4 LS-Ausgänge 4-16 Ohm.

• Mentioned in
• Original Telefunken Service Unterlagen

• Literature/Schematics (1)
• FFH Braune Liste 80/81

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
