• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1979 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 170559

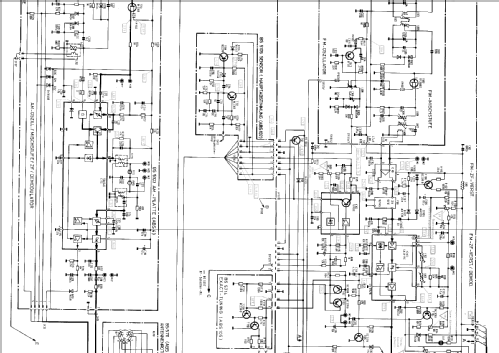

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 180 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: HR5500 Digital Ch= 2000 - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 580 x 140 x 320 mm / 22.8 x 5.5 x 12.6 inch

• Notes
• UKW-Scharfabstimmung,(AFC) schaltbar. PLL-Decoder.
  Digitale Frequenzanzeige, für UKW auf Kanal umschaltbar.
  Abstimmanzeige in LED-Technik.
  Eingänge: Tonband, 2x Phono, Aux, Monitor.
  2 Lautsprecher-Paare anschliessbar.

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• FFH Braune Liste 80/81

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
