Hymnus Hi-Fi Stereo 5014 Wk

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119861

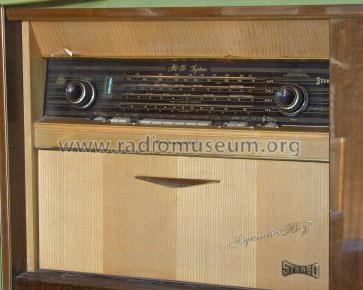

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

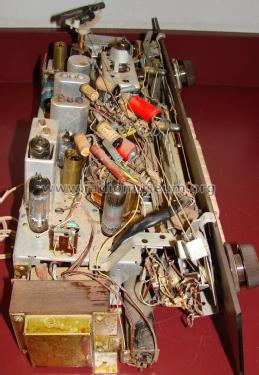

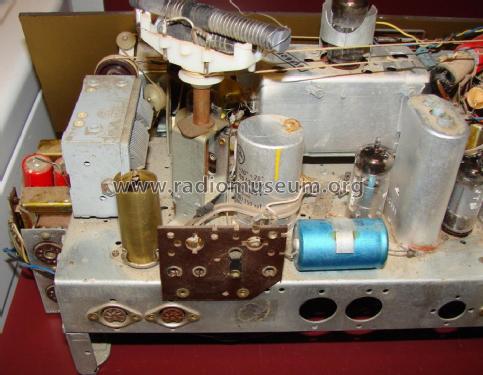

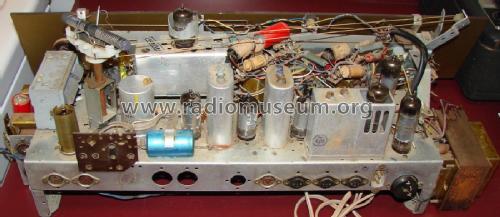

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 EF89 ECH81 EF89 EM84 EF89 EABC80 ECC83 ECC83 EL84 EL84

• Main principle
• Superhet with RF-stage; Export model

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Hymnus Hi-Fi Stereo 5014 Wk - Telefunken Deutschland TFK,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1270 x 870 x 440 mm / 50 x 34.3 x 17.3 inch

• Notes
• US version, FM tuning range from 87.5 to 108 MHz; SW1 from 2.2 to 7.0 MHz, SW2 from 7.0 to 22.5 MHz.
  Four speed record changer, Telefunken model TW 562/8 TS STEREO.
  CONELRAD compliant AM tuning dial.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
