• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 244679

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF85 EF41 EABC80 EM11 EL41

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 452 or 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

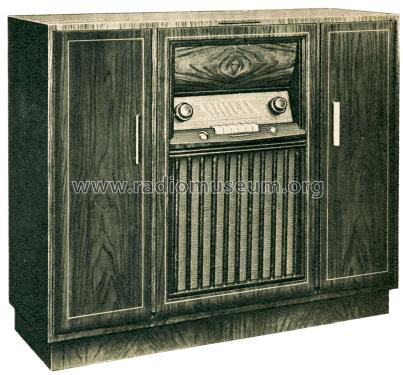

• Model: Hymnus I - Telefunken Deutschland TFK,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1030 x 865 x 380 mm / 40.6 x 34.1 x 15 inch

• Notes

• Eingebauter Telefunken-Super Allegro.
  Telefunken Plattenspieler TP352 für 33 1/3, 45 und 78 U/min.

• Price in first year of sale
• 850.00 DM

• Author
• Model page created by Jürgen Küting. See "Data change" for further contributors.
