ID54U2/K

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1955/1956
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 94248

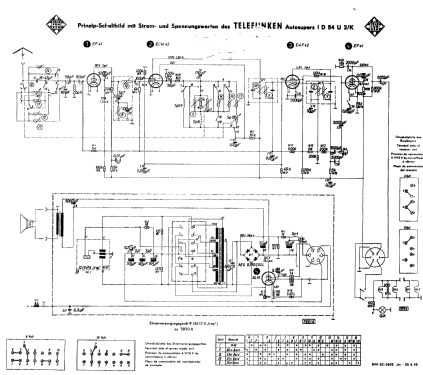

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 452 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 4 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: ID54U2/K - Telefunken Deutschland TFK,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 175 x 61 x 175 mm / 6.9 x 2.4 x 6.9 inch
  • Notes

  • 2-teilig; 4× KW.

    Wellenbereiche: 4x KW (60m, 49m, 41m und 31m-Band), 1x MW.
    2-teilig: Zerhackerteil 205 x 133 x 90 mm, 3 kg
    Tropenfest.

    Im Rundfunk-Phono-Fernsehkatalog 1955/56 als ID54UK  gelistet.

  • Net weight (2.2 lb = 1 kg)
  • 1.9 kg / 4 lb 3 oz (4.185 lb)
  • Price in first year of sale
  • 284.00 DM
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
