• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1953–1955

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 19479

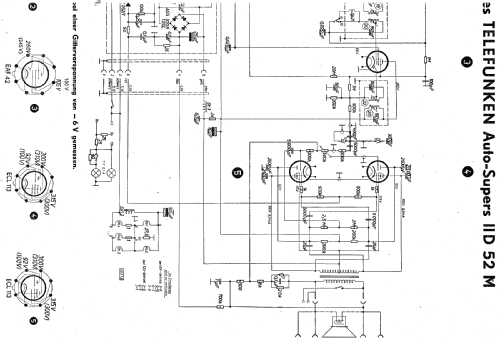

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF41 ECH42 EAF42 ECL113 ECL113

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: IID52M - Telefunken Deutschland TFK,

• Notes
• auch in Kat. 442.

• Price in first year of sale
• 488.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1953/54
