• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110393

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH42 EAF42 EAF42 EAF42 EM11 EL12 EZ12

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 25 cm = 9.8 inch

• Material
• Wooden case

• from Radiomuseum.org

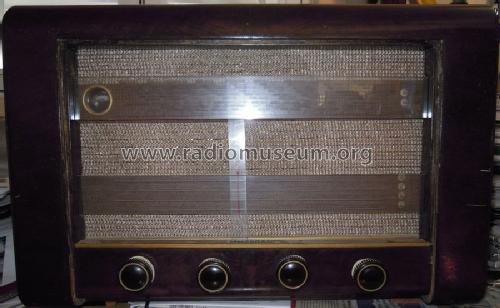

• Model: Imperial A1297 - Telefunken Radiotécnica

• Shape
• Tablemodel, low profile (big size).

• Notes
• 4× OC. 2º Altavoz = 10 cm.
  4× SW. 2nd loudspeaker = 10 cm.

• Price in first year of sale
• 4,890.00 Ptas

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
