• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132080

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

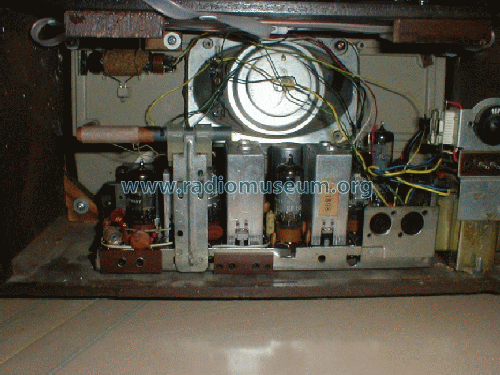

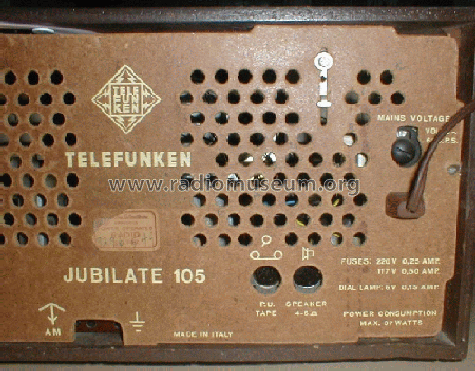

• Model: Jubilate 105 - Telefunken Italia, Milano

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14 x 7 x 7 inch / 356 x 178 x 178 mm

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• - - Data from my own collection

• Other Models

• Here you find 288 models, 243 with images and 201 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Italia, Milano
