• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 246574

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.9 W (2 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

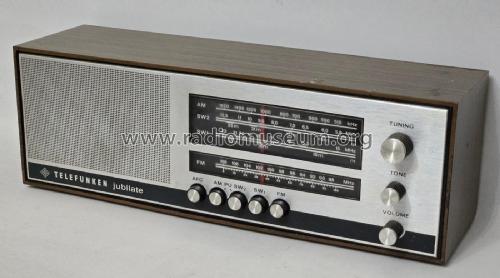

• Model: Jubilate 305 - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 145 x 125 mm / 16.5 x 5.7 x 4.9 inch

• Notes

• See also Telefunken Jubilate 301 with bands LW, MW, SW and FM.

• Price in first year of sale
• 3,500.00 PTE

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
