Jubilate 5351W

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1962 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 119307

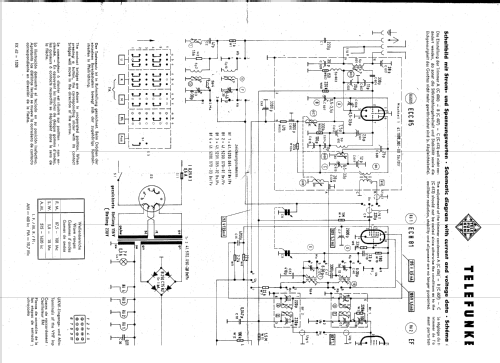

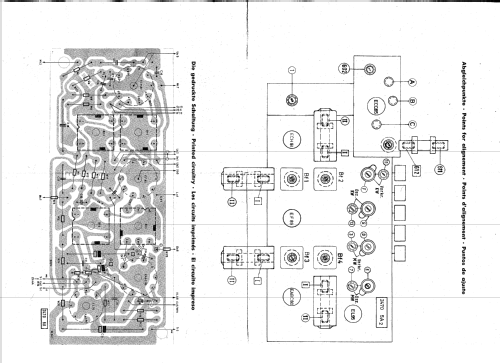

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 115/230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Jubilate 5351W - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 14.5 x 8 x 7 inch / 368 x 203 x 178 mm
  • Notes

  • Exportmodell, Skala ohne Stationsnamen, typisch für USA etc.

    Wellenbereiche:

    • MW 515 - 1620 kHz
    • KW 5,8 - 18 MHz
    • UKW 87,5 - 108 MHz

    KW-Lupe, eingebaute Folienantenne für KW
    Eingebaute Ferrit-Stabantenne für MW
    76 cm Wurfantenne für UKW

    Selen-Gleichrichter AEG B 250 C75 N 2 bt
