- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 133945

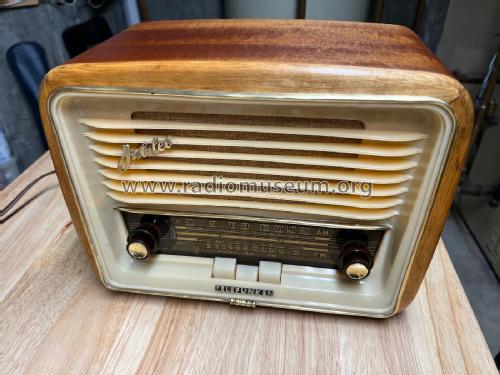

Telefunken JUBILEE Export front
Telefunken JUBILEE Export back

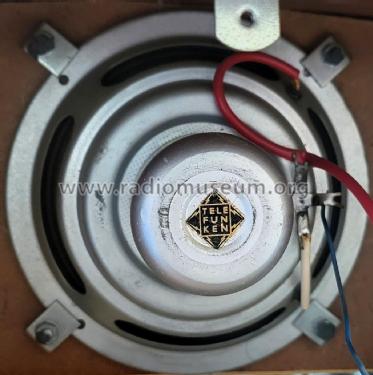

Telefunken JUBILEE Export back detail
Telefunken JUBILEE Export badge
Telefunken JUBILEE Export bottom

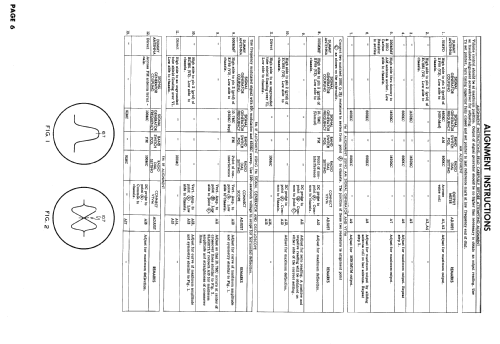

Picture from service manual.

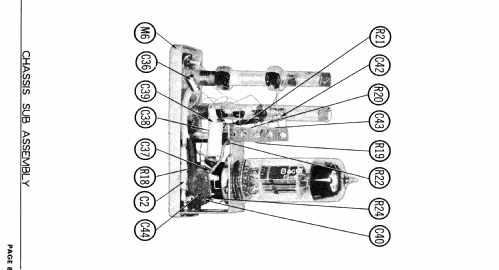

SAMS Photofact reference picture.
radio della mia collezione

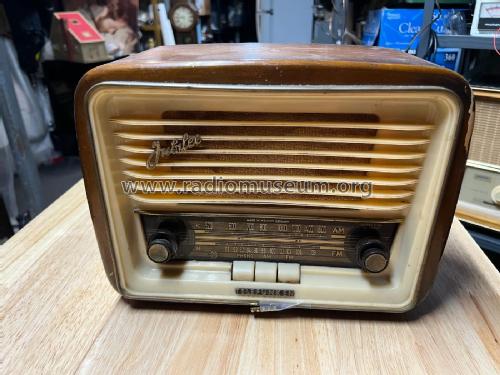

Back view. This is how I received the radio.

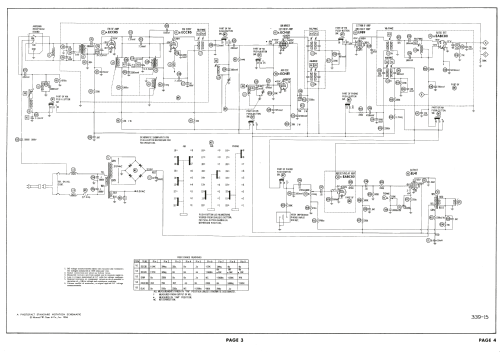

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s); Export model
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Jubilee - Telefunken Deutschland TFK,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 12.75 x 9.25 x 7.25 inch / 324 x 235 x 184 mm
- Notes
-
Jubilee is a typical export model - for 60 cycles mains - from Telefunken. Supplier in the USA was American Elite, Inc., 7 Park Avenue, New York.
This AC operated FM-AM Superheterodyne receiver uses the tube ECC85-6AQ8 as FM RF Amp.-FM Converter and the ECH81-6AJ8 as 1st FM IF Amp and as AM Mixer-Osc. The EF89-6DA6 is the 2nd FM IF Amp.-AM IF Amp., the EABC80-6AK8 the Ratio-Detector-AM Det.-AVC-AF Amp., followed by the EL41-6CK5 as output tube. Rectifier is a selenium rectifier.
See also the German domestic model Jubilate 6 with additional long wave range.
