• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 290041

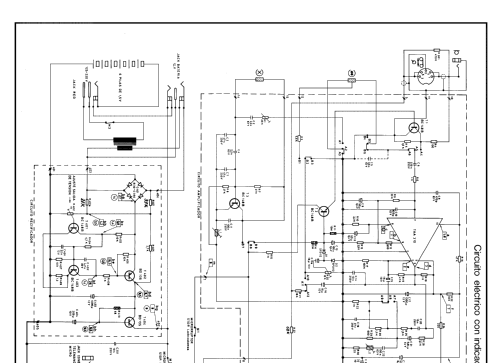

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BC148 BC148 BC148 BC148 BC148 AC180 BC208 BC148 BD135 BC148 BD136 SFD112 SD60 B30C350 TAA310 TAA611

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 6 x 1,5 / 125; 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: K-80 [con IC] - Telefunken Radiotécnica

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 170 x 7.5 mm / 10.6 x 6.7 x 0.3 inch

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
