- Country
- Spain
- Manufacturer / Brand
- Telefunken Radiotécnica Ibérica; Getafe
- Year
- 1975 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 327482
todocoleccion.net
todocoleccion.net
todocoleccion.net

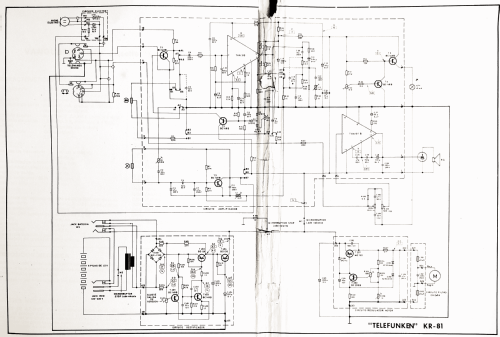

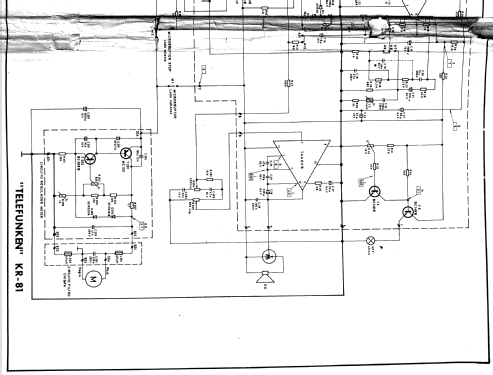

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- BC148 BC148 BC148 BC148 BC148 MC150 BC208 BC148 BC148 BD136 BD135 TAA310 TAA611 B30C350
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 125; 220 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: K-81 - Telefunken Radiotécnica
- Mentioned in
- -- Schematic (Esquemario de Magnetófonos y cassettes III 1976)
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
