• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4413

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• RENS1264 RENS1264 RENS1374d RGN1064 RGN2004

• Main principle
• Superheterodyne (common); ZF/IF 500 kHz; Super, reaction, but not adjustable

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Kamerad 3300WL - Telefunken Deutschland TFK,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 489 x 564 x 235 mm / 19.3 x 22.2 x 9.3 inch

• Notes

• Ch=Siemens 36WL

  E-dyn-Lautsprecher mit extra Netzteil und Gleichrichterröhre.

• Price in first year of sale
• 435.00 RM

• Source of data
• Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in

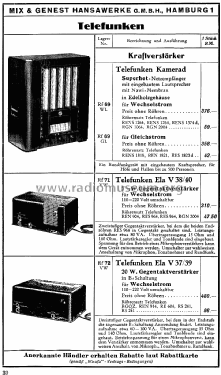

• Radio-Katalog, Mix & Genest Hansawerke, 1935

• Literature/Schematics (2)
• Funk Bastler (1934 H. 9, S.349)
