- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1941–1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 4192

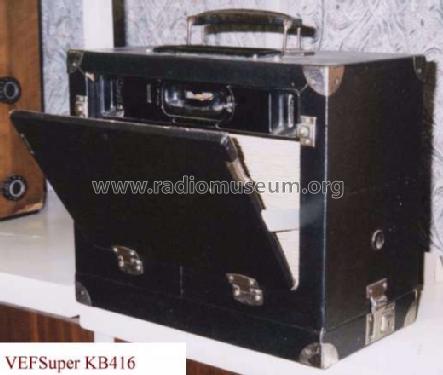

VEFSuper KB416 from VEF museum

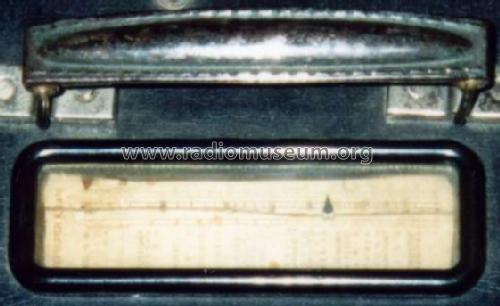

Scale
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 90-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: KB416 - Telefunken Deutschland TFK,
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Ostlandwerk (VEF in Riga!), Koffergerät für Wehrmacht
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Funkgeschichte der GFGF (8863)
- Literature/Schematics (1)
- RADIOBOTE, Österr. (Heft 24/2009, S.18 ff, Thema: Truppenbetreuungsempfänger)
