- Country
- Italy
- Manufacturer / Brand
- Telefunken Italia, Milano
- Year
- 1970–1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 270579
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.22 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

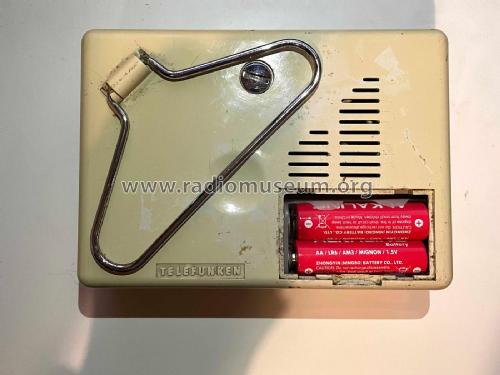

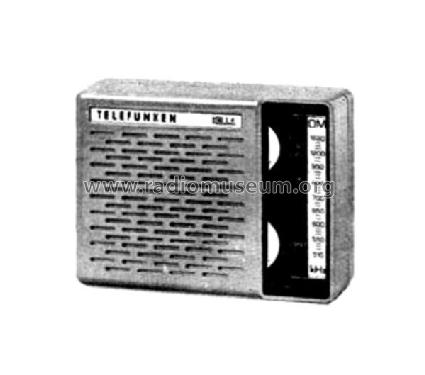

- Model: Kella - Telefunken Italia, Milano
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 140 x 100 x 45 mm / 5.5 x 3.9 x 1.8 inch
- Notes
-
Il transistor PTO/1 come sovente, anche qui è utilizzato come Diodo.
- Net weight (2.2 lb = 1 kg)
- 0.470 kg / 1 lb 0.6 oz (1.035 lb)
- Mentioned in
- Catalogo ANIE (1970-71, 1971-72)
- Literature/Schematics (1)
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
- Author
- Model page created by Leonardo Mureddu. See "Data change" for further contributors.
