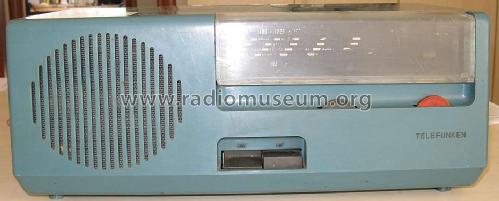

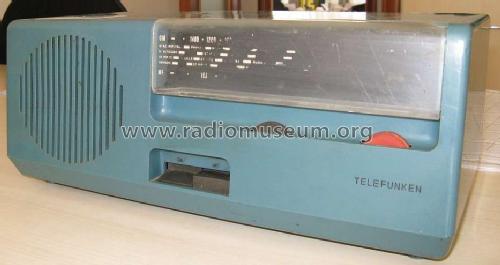

KID II R550
Telefunken Italia, Milano
- Country
- Italy
- Manufacturer / Brand
- Telefunken Italia, Milano
- Year
- 1959 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 168894
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 125;160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: KID II R550 - Telefunken Italia, Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 370 x 145 x 175 mm / 14.6 x 5.7 x 6.9 inch
- Notes
-
Lo schema attualmente visibile è della Domino 56 R555; la Kid II R550 ha il medesimo schema, tranne: la mancanza del CAF, il rispettivo tasto, e la banda Onde Corte.
- Author
- Model page created by Giovanni Mura. See "Data change" for further contributors.
