• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1942/1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4130

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DCH11 DF11 DAF11 DL11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch

• Material
• Wooden case

• from Radiomuseum.org

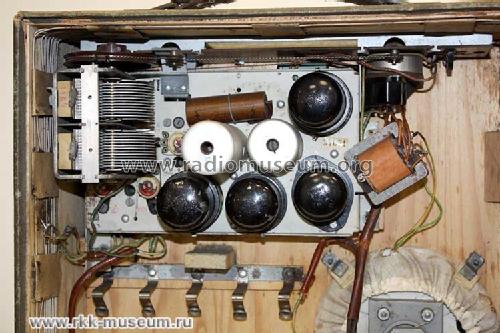

• Model: Koffersuper KB42 - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 320 x 130 mm / 12.6 x 12.6 x 5.1 inch

• Notes
• auch rote Rö-Serie (Exp.,evtl.Austria)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Schenk-Regelien
