• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1975 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 162042

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

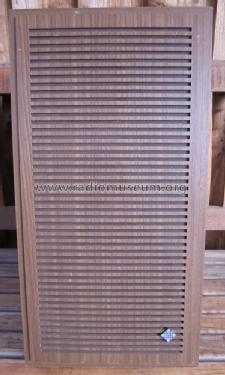

• Model: Lautsprecher Box L7000 - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 270 x 530 x 240 mm / 10.6 x 20.9 x 9.4 inch

• Notes
• Telefunken Lautsprecher Box L 7000; Tiefton-Lautsprecher 203 mm, Mittelton-Lautsprecher 130 mm, Hochton-Lautsprecher 75x130 mm, Nennbelastbarkeit 40 Watt, Musikbelastbarkeit 60 Watt, Übertragungsbereich 40 - 20000 Hz an 4 Ohm.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Mentioned in
• Original Telefunken Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
