• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1967–1970 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 75865

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• AC150 AC122 AC122 BC148 or. BC108 or. BC130 AC116 AC117 AC175 AC124 AA134 M2x15C350/250

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

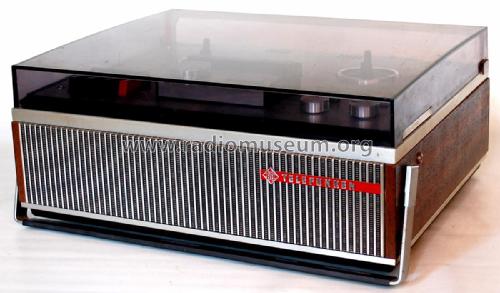

• Model: Magnetophon 201 de luxe - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 395 x 160 x 310 mm / 15.6 x 6.3 x 12.2 inch

• Notes

• Vierspur-Mono; Bandgeschwindigkeit 9,5 cm/S; Spulen-Ø 18 cm.

  Magnetophon 201 de luxe entspricht technisch dem Magnetophon 201TS,

  ---

  Es gibt einen Ersatzmotor von Telefunken.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
