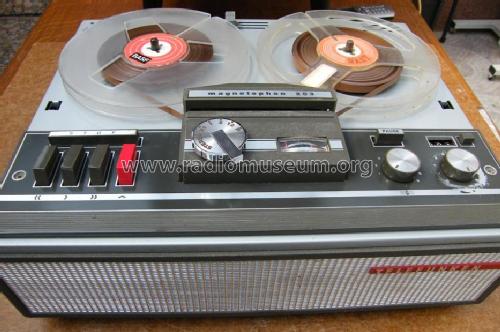

Magnetophon 203 M 203

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1965–1969

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 25160

• Picture
• Schematics

Previous Next

Previous Next

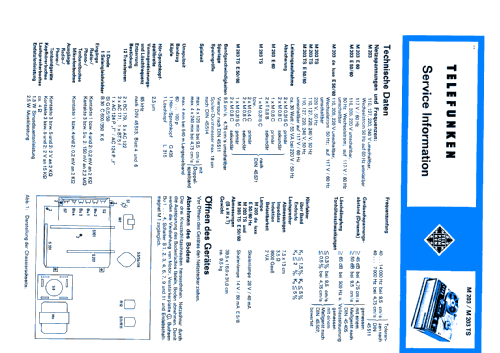

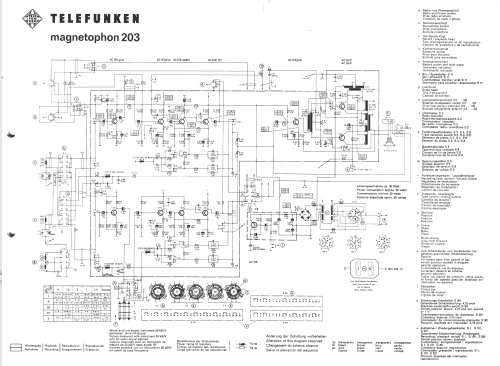

Click on the schematic thumbnail to request the schematic as a free document.

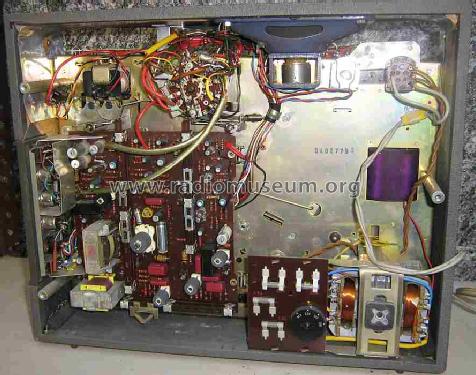

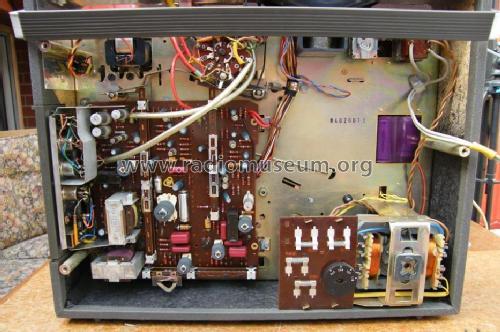

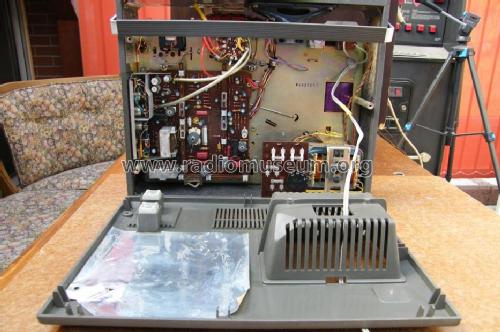

• Number of Transistors
• 12

• Semiconductors
• AC122 AC122 AC122 AC122 AC122 AC124 AC124 AC150 AC150 AC171 AC171 AC175

• Main principle
• Audio-Amplification

• Wave bands
• - without

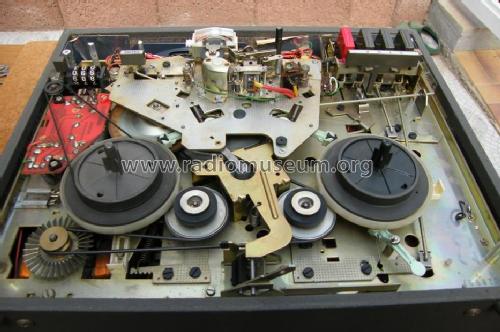

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 200; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Magnetophon 203 M 203 - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 395 x 160 x 310 mm / 15.6 x 6.3 x 12.2 inch

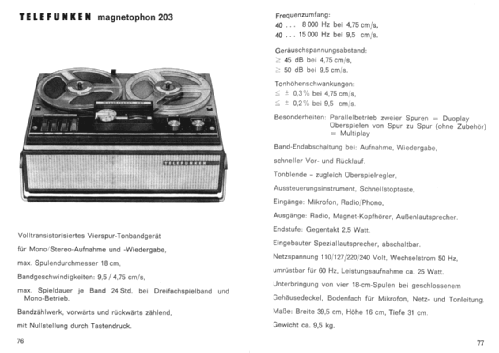

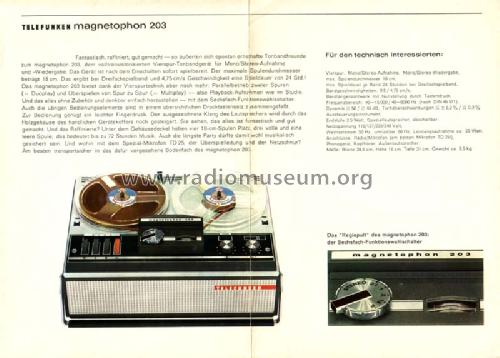

• Notes
• Vierspur; Bandgeschwindigkeiten 4,75/9,5 cm/s; Spulen-Ø 18 cm. Stereo-Wiedergabe nur über zusätzlichen Verstärker möglich.
  Parallelgerät zu AEG Magnetophon 203.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• External source of data
• Rutishauser/EE

• Source of data
• Handbuch VDRG 1965/1966
