Magnetophon 203 de luxe M 203
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1966–1968
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 113346
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

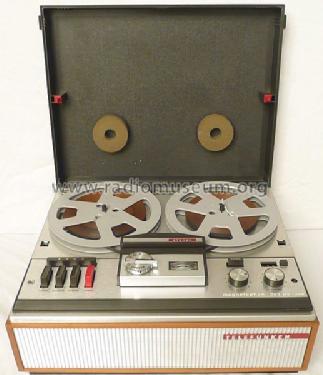

- Model: Magnetophon 203 de luxe M 203 - Telefunken Deutschland TFK,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 395 x 160 x 310 mm / 15.6 x 6.3 x 12.2 inch
- Notes
- Vierspur-Stereo; Bandgeschwindigkeiten: 4,75/9,5 cm/s; Spulen-Ø 18 cm. Stereo-Wiedergabe nur über zusätzlichen externen Verstärker.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Source of data
- Handbuch VDRG 1966/1967
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
