• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1970 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 192875

• Number of Transistors
• 13

• Semiconductors
• BC252 BC252 BC148 AC180 AC150 AC122 AC122 AC122 AC122 AC117 AC117 BC153 AC122

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Storage and/or dry batteries / 5 x 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Magnetophon 300 automatic - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 273 x 77 x 277 mm / 10.7 x 3 x 10.9 inch

• Notes
• Halbspur-Mono; Bandgeschwindigkeit 9,5 cm/s;
  Spulen-Ø 13cm; 3-stelliges Bandzählwerk;
  Ueber den Lautstärkeregler zuschaltbare Aufnahme-Automatik.

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Source of data

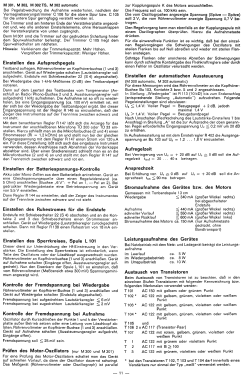

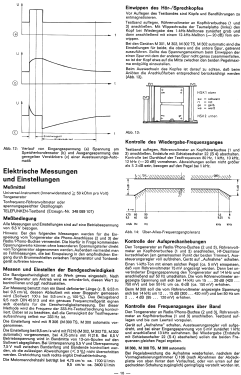

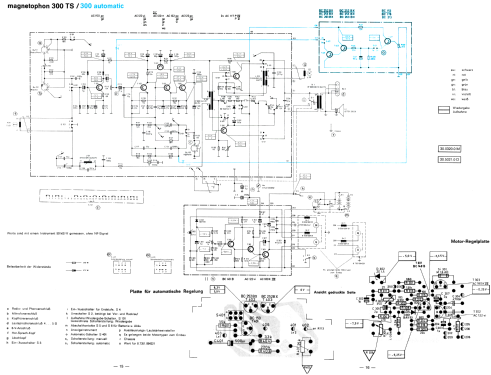

• -- Schematic

• Author
• Model page created by Peter Zimmermann. See "Data change" for further contributors.
