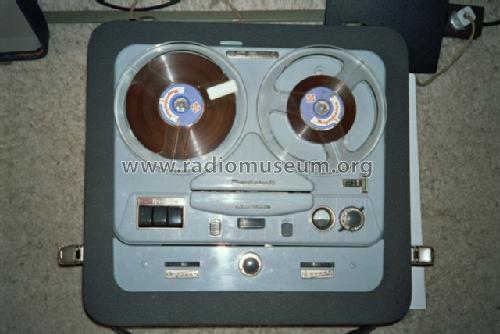

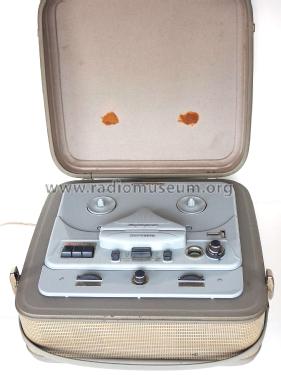

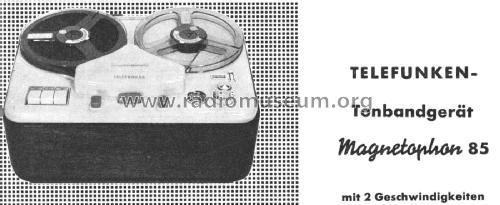

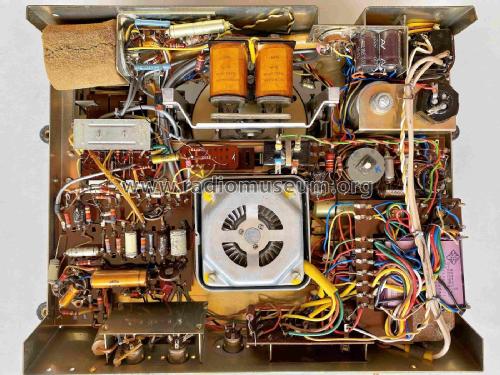

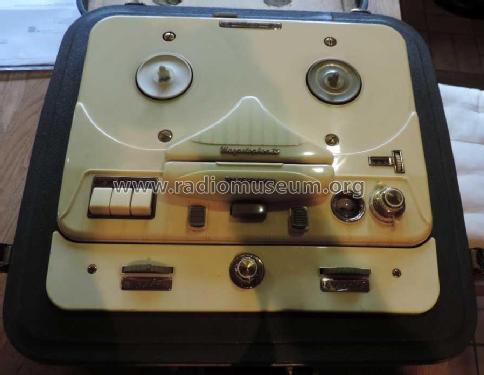

Magnetophon 85 EM71a

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1962/1963

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 24623

• Picture

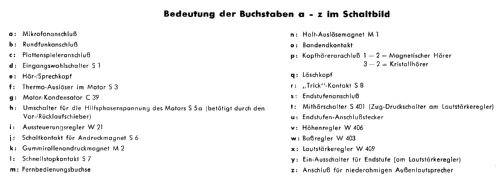

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF86 ECC83 ECC83 ECC81 EM71a EL95 EL95

• Number of Transistors

• Semiconductors
• E30C5 B250C65 B25-20-0,8

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Magnetophon 85 [EM71a] - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 200 x 410 mm / 17.7 x 7.9 x 16.1 inch

• Notes
• Zweispur, 9,5/19 cm/s; Spulen-Ø 18 cm.
  Parallelgerät zu: AEG Magnetophon 85.

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• Price in first year of sale
• 749.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963
